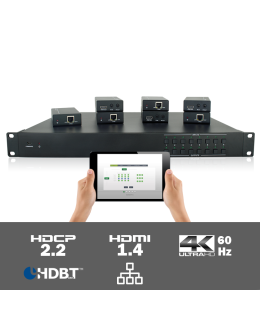

MUH88E - 8x8 HDMI HDBaseT matrix SET 4K60 4:2:0
De MUH88E SET is een totaaloplossing voor 4K HDMI...
Bekijk groter
MUH88E - 8x8 HDMI HDBaseT matrix SET 4K60 4:2:0
MUH88E
Nieuw product
De MUH88E SET is een totaaloplossing voor 4K HDMI switching en distributie. De MUH88E SET wordt compleet geleverd met maarliefst 7 stuks HDBaseT ontvangers. De MUH88E ondersteunt 8x 4K@60Hz 4:2:0 en HDCP 2.2. Gebruik hem als Matrix of als handige HDbaseT distributie.
De MUH88E set is een totaaloplossing voor 4K HDMI switching en distributie. De MUH88E wordt geleverd met 7 HDBaseT ontvangers. De MUH88E ondersteunt 8x 4K@60Hz 4:2:0 en HDCP 2.2.
Features:
- 8x8 Matrix switching (elk ingang naar elke uitgang te selecteren)
- 8x8 (1x HDMI local en 7x HDbaseT uit)
- Ondersteunt tot 4K*2K @ 60Hz 4:2:0
- HDCP 2.2
- Webinterface met slimme Gui
- EDID management build in (manual/auto)
- Control via IR, Button en Rs-232
- 7x HDBaseT uitgang, 4K@60Hz tot 40m, 1080p tot 70m
- Audio de-embedding analoog en digitaal
- PoH ondersteund: Matrix kan extenders via Cat kabel voeden (matrix-->RX)
Leveringsomvang: 1x MUH88E, 7x HDbaseT ontvangers, 1x voedingsadapter
Specificaties:
Video Input | |
Input | 8 HDMI |
Input Connector | Female HDMI |
Input Level | T.M.D.S. 2.9V~3.3V |
Input Impedance | 100Ω (Differential) |
HDMI Standard | Support 4K@60 4:2:0 & HDCP2.2 and is backward compatible with all previous standards. |
Video Output | |
Output | 1 HDMI 7 HDBaseT |
Output Connector | Female HDMI Female RJ45(with LED indicators) |
Output Level | T.M.D.S. 2.9V~3.3V |
Output Impedance | 100Ω (Differential) |
HDMI Standard | Support 4K@60 4:2:0 & HDCP1.4 and is backward compatible with all previous standards. |
Video general | |
Video Signal | HDMI (or DVI-D) |
Transmission Distance | 1080P@60Hz ≤70m 4Kx2K@60Hz ≤40m |
Resolution Range | Up to 4Kx2K@60Hz |
EDID Management | In-built EDID data and manual EDID management |
Gain | 0 dB |
Bandwidth | 10.2Gbit/s |
Switching Speed | 200ns (Max.) |
Audio general | |
Output Signal | Stereo audio Digital audio |
Analog Audio Output | Support PCM |
Digital Audio Output | Supports PCM, Dolby, DTS, DTS-HD |
Frequency Response | 20Hz~20KHz |
Output Connector | 1L&R(RCA) 1 SPDIF |
Control Parts | |
Control Ports | 8 IR OUT 1 IR ALL OUT 7 IR IN 1 IR EYE |
Panel Control | Front panel buttons |
RS232 Control | 3-pin pluggable terminal block |
IR | Extended IR receiver |
TCP/IP Control | Web-based GUI |
General | |
Power Supply | AC100-240V~, 50/60Hz |
Power Consumption | 93W (Max) |
Temperature | 0 ~ +50℃ |
Reference Humidity | 10% ~ 90% |
Dimension (W*H*D) | 436.4mm x 44.0mm x 300.0 mm |
Net weight | 2.9Kg |
Specificaties
| Fysiek | |
| Omvang | 436.4 mm x 44.0 mm x 300 mm (WxHxD, 1U) |
| Gewicht | 2.9 Kg |
| Humidity | 10% ~ 90% |
| Temperatuur | 0 ~ +50℃ |
| Voeding | AC100-240V~, 50/60Hz |
| 19 inch | Ja |
| Stroomverbuik | 93 Watt max |
| Signaal | |
| Ingangen | 8x HDMI female, 8x IR (3.5mm jack), 1xTCP/IP (RJ45, control), 1x RS232 (terminal block, control) |
| Uitgangen | 7x RJ45 HDBaseT, 1x HDMI female, 8x IR (3.5mm jack), 1x analoge audio (stereo RCA), 1x digital audio (SP/DIF) |
| Aansturing | RS232, front panel buttons, IR, TCP/IP with web GUI |
| Bandbreedte | 10.2 Gbp/s |
| Transmissie afstand | 1080p ↔ 70m ▬ 4K ↔ 40m |
| Maximale resolutie | 4K x 2K @ 60Hz (4:2:0) |
| Audio standaard | PCM, Dolby, DTS, DTS-HD |
| Upscale resoluties | No scaling |
| Standaarden | |
| HDMI Standaard | HDMI 1.4 |
| HDCP Standaard | HDCP 2.2 |
| HDBaseT versie | HDBaseT 1.0 |
| HDBaset voeding | PoC TX ► RX |
| Algemene specificaties | |
| Auto switching | Nee |
| EDID Management | Ja |
| Overige | |
| Diagram | https://www.digichain.nl/images/diagrams/muh44_schema.png |
