MMX-4I-BT - 4K HDBaseT Modular Matrix input card
4x HDBaseT 4K input kaart voor de MMX serie matrix...
View larger

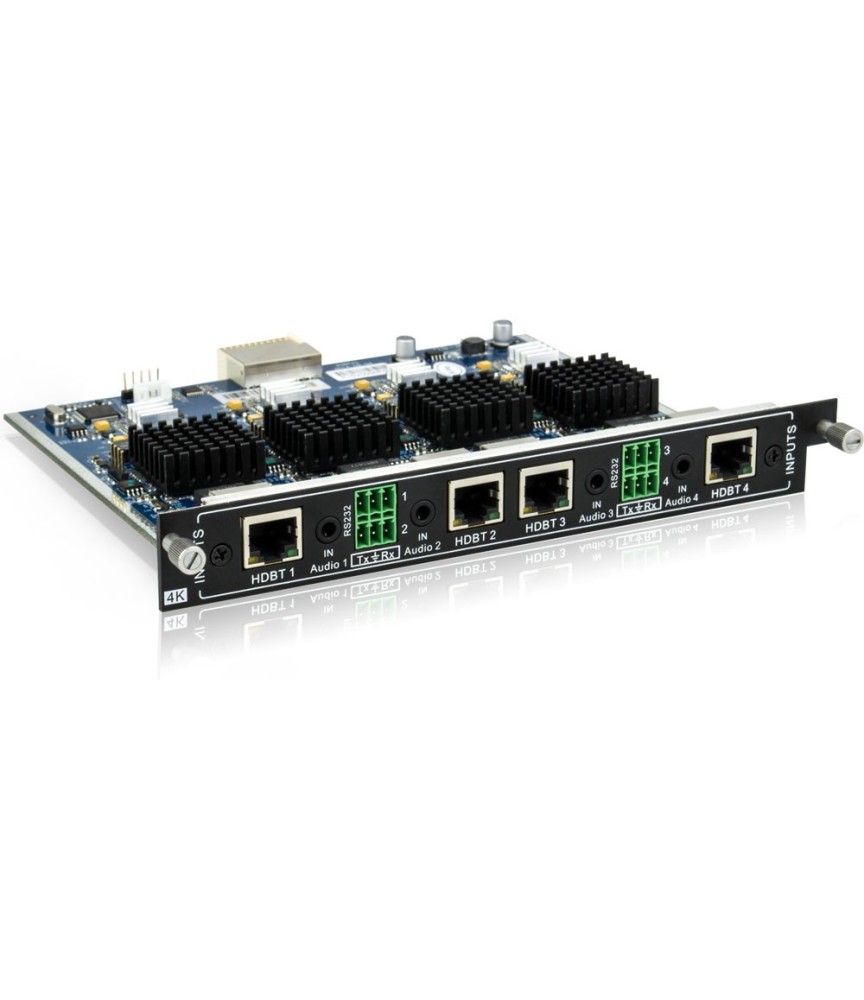

MMX-4I-BT - 4K HDBaseT Modular Matrix input card
MMX-4I-BT
New product
4x HDBaseT 4K input kaart voor de MMX serie matrix switchers. Voor gebruik van deze kaart heeft u de PTN TPHD402PT transmitter nodig.
4x HDBaseT 4K input kaart voor de MMX serie matrix switchers. Voor gebruik van deze kaart heeft u de TPUH411T transmitter nodig.
Features:
- HDBaseT input voor HDMI tot 70 meter (1080p), tot 40 meter (4Kx2K)
- Resoluties tot 4096 x 2160@30Hz
- Inclusief audio en RS232
- HDMI 1.4a compliant
- HDCP 1.4 compliant
- HDBT 1.0 compliant
- Te combineren met de Digichain Electronics TPUH411T (over 1 CATx kabel)
- Bi-directionele RS232 pass through
- Hot swappable
Specificaties:
Input | 4 HDBT (Female RJ45) T.M.D.S 2.9V～3.3V, 4 Stereo audio (3.5mm stereo audio connector), 4 RS232 ( Captive screw connector) |
Frequency Response | 20Hz～20K Hz |
Gain | 0dB |
Bandwidth | 10.2Gbps |
Max Resolution | 4Kx2K |
Crosstalk | <-50dB@5MHz |
Transmission Distance | 1080P≤70m,4KX2K ≤40m |
Switching Speed | 200ns (Max.) |
Return Loss | <-30dB@ 5KHz |
SNR | >70dB@ 100MHz-100M |
Supported Audio Format | Embedded HDMI audio: PCM, Dobly Digital, DTS, DTS-HD |
HDMI Standard | Support HDMI1.4 |
EDID& HDCP Management | Compliant with HDCP 1.4; Support manual EDID management |
Reference Humility | 10%～90% |
Work Temperature | -10 ~ +40℃ |
Data Sheet
| Physical | |
| Humidity | 10% ～90% |
| Temperature | 0 ~ 50℃ |
| Signal | |
| Inputs | 4x RJ45 HDbaseT, 4x audio (3.5mm jack), 4x RS232 bi-directional (terminal block) |
| Outputs | 4x RS232 bi-directional (terminal block) |
| Bandwidth | 10.2 Gbp/s |
| Transmission distance | 1080p ↔ 70m ▬ 4K ↔ 40m |
| Maximum resolution | 4K x 2K @ 60Hz (4:2:0) |
| Audio standard | Embedded HDMI audio: PCM , Dobly Digital, DTS, DTS-HD Analog audio: PCM |
| Upscale resolutions | No upscaling |
| Standards | |
| HDMI Standard | HDMI 1.4 |
| HDCP Standard | HDCP 1.4 |
| HDBaseT version | HDBaseT 1.0 |
| HDBaseT power | None |
| General specifications | |
| Auto switching | No |
