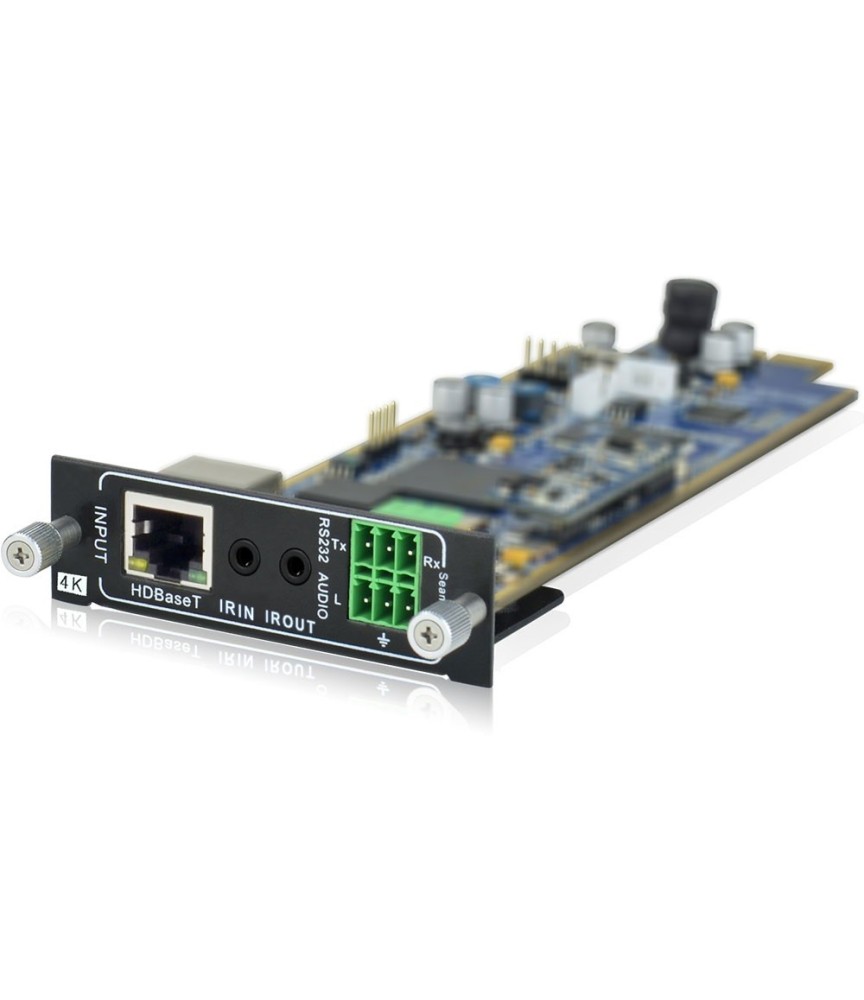

FMX-IBT - 4K Seamless HDBaseT inputcard

FMX-IBT

New product

Seamless HDBaseT inputkaart voor de FMX16 en FMX32 matrix switchers. Deze inputkaart is geschikt voor resoluties tot 4K@30Hz.


 4k_1.PNGPTN Electronics HDCP 1.3

More details

Terminal block (screw)
 HDCP
 EDID
 Maximale resolutie

Seamless HDBaseT inputkaart voor de FMX16 en FMX32 matrix switchers. Deze inputkaart is geschikt voor resoluties tot 4K@30Hz.

  • 4Kx2K@30Hz
  • Hot-swappable, FMX auto detecteerd de kaart
  • HDMI 1.4 compliant
  • HDCP 2.2 compliant
  • IR in & out
  • Bi-directionele RS232
  • Analoge audio input
  Input  Output
  Kaart  Poorten  Kaart  Poorten
  FMX-ITP  1x HDbaseT, analoge audio, R232    FMX-OTP  1x HDbaseT, analoge audio, R232
  FMX-ISD  1x SDI in, 1x SDI loopthrough  FMX-OSD  1x SDI in, 1x SDI loopthrough
  FMX-IVG  1x VGA , analoge audio  FMX-OVG  1x VGA , analoge audio
  FMX-IDV  1x DVI, analoge audio  FMX-ODV  1x DVI, analoge audio
  FMX-IHD    1x HDMI, analoge audio  FMX-OHD    1x HDMI, analoge audio

  FMX-IBT    1x HDbaseT     (LET OP: FMX16/32)  FMX-OBT  1x HDBaseT     (LET OP: FMX16/32)
  FMX-IUH  1x HDMI 4K     (LET OP: FMX16/32)  FMX-OUH  1x HDMI 4K     (LET OP: FMX16/32)



FMX Inputcards Brochure [ENG]

Download (316.23k)

Data Sheet

Physical
Humidity 10%~90%
Temperature 0~50℃
Power consumptions 15 Watt
Signal
Inputs 1x RJ45 HDBaseT, 1x audio (terminal block), 1x bi-directional RS232 (terminal block)
Bandwidth 18 Gbp/s
Transmission distance 1080p ↔ 70m ▬ 4K ↔ 40m
Maximum resolution 4K x 2K @ 60Hz (4:4:4)
Supported resolutions Auto, 4K*2K@60Hz, 4K*2K@30Hz, 1024x768@60Hz, 1920x1080p@60Hz, 1280x720@60Hz
Audio standard PCM
Upscale resolutions No scaling
Standards
HDMI Standard HDMI 2.0
HDCP Standard HDCP 2.2
HDBaseT version HDBaseT 1.0
General specifications
Auto switching No
EDID Management Ja
Seamless Switching Yes
