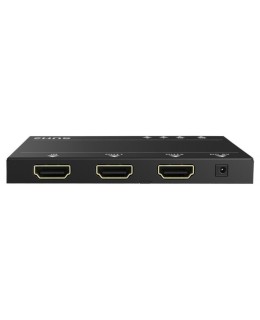

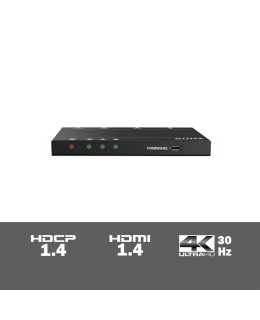

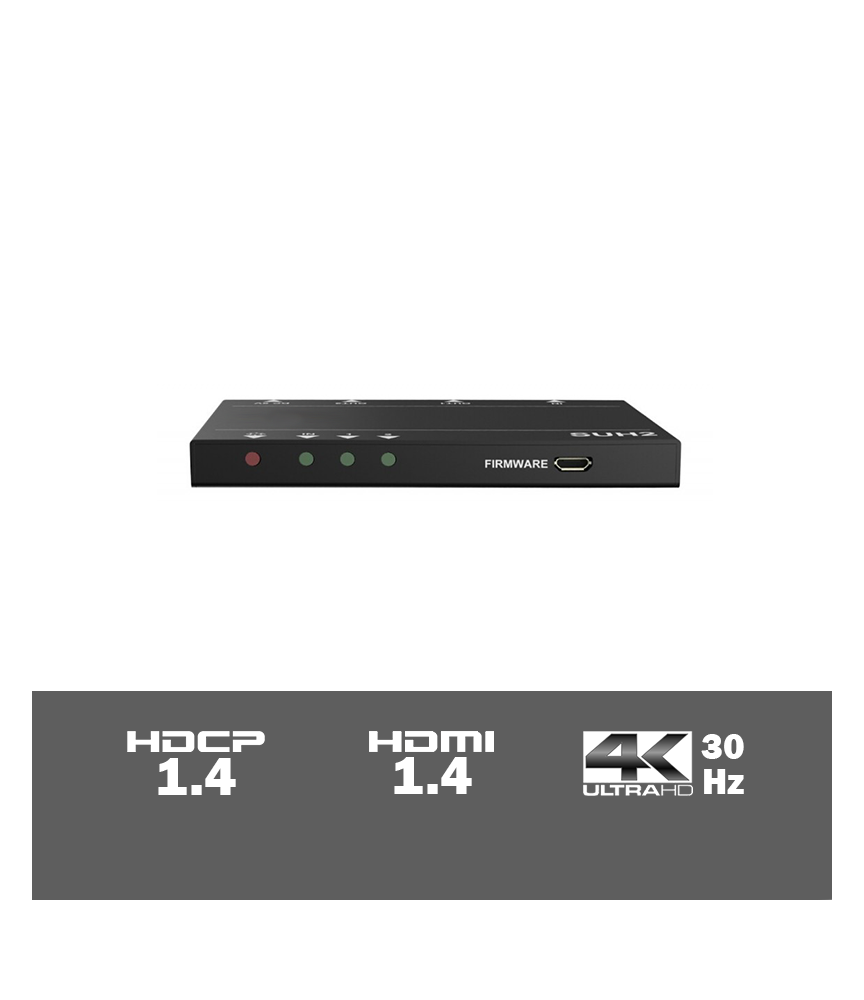

SUH2 - 2-voudige 4K HDMI splitter
Zeer compacte 2-voudige HDMI splitter met ondersteuning...
View larger
SUH2 - 2-voudige 4K HDMI splitter
SUH2
New product
Zeer compacte 2-voudige HDMI splitter met ondersteuning tot 4K. Met een dikte van slechts 1 cm ideaal te plaatsen in rack of achter een monitor.
Zeer compacte 2-voudige HDMI splitter met ondersteuning tot 4K. Met een dikte van slechts 1 cm ideaal te plaatsen in rack of achter een monitor.
Features:
- Hot-pluggable
- HDMI 1.4 compliant, 1080p, 3D en 4K ondersteuning
- Actieve splitter, 1080p HDMI tot 15 meter
- 10.2 Gbps bandbreedte
- EDID management, neemt automatisch de laagste EDID over
Specificaties:
Video Input | ||||
Input | 1 HDMI | |||
Input Connector | 1 female type A HDMI 1.4 | |||
Min/ Max Signal Level | T.M.D.S. 2.9V~3.3V | |||
Input Impedance | Differential 100Ω | |||
Video Output | ||||
Output | 2 HDMI | |||
Output Connector | 1 female type A HDMI 1.4 | |||
Min/ Max Signal Level | T.M.D.S. 2.9V~3.3V | |||
Output Impedance | Differential 100Ω | |||
Video General | ||||
Max data rate | 10.2Gbit/s | |||
Max Resolution | 4Kx2K, 1080P 3D@60Hz | |||
Max Pixel Clock | 340MHz | |||
Gain | 0dB | |||
HDCP | Compliant with HDCP1.4 | |||
EDID | In-built EDID management | |||
General | ||||
Temperature | -10 ~ +40℃ | ReferenceHumidity | 10% ~ 90% | |
Power Consumption | 2.5 W | Power | DC 5V 1A | |
Weight | 0.08kg | Dimension(W*H*D) | 100x 11x 70mm | |
Data Sheet
| Physical | |
| Dimensions | 100x 11x 70mm (H x W x D) |
| Weight | 80 gr |
| Humidity | 10% ~ 90% |
| Temperature | -10 ~ +40℃ |
| Power supply | DC 5V 1A |
| 19 inch | No |
| Power consumptions | 2.5 Watt |
| Signal | |
| Inputs | 1x HDMI |
| Outputs | 2x HDMI |
| Bandwidth | 10.2 Gbp/s |
| Transmission distance | HDMI up to 15m |
| Maximum resolution | 4K x 2K @ 60Hz (4:2:0) |
| Supported resolutions | 720 x 480 ~ 3840 x 2160@30Hz (See manual for complete list) |
| Audio standard | PCM |
| Standards | |
| HDMI Standard | HDMI 1.4 |
| HDCP Standard | HDCP 1.4 |
| General specifications | |
| EDID Management | Ja |
| Overige | |
| Diagram | https://www.digichain.nl/images/diagrams/diagram_suh2.png |
