CHA2 - HDMI audio de-embedder
Dit model is opgevolgd door de CE-CVAD. De CHA2 is een...
Dit model is opgevolgd door de CE-CVAD.

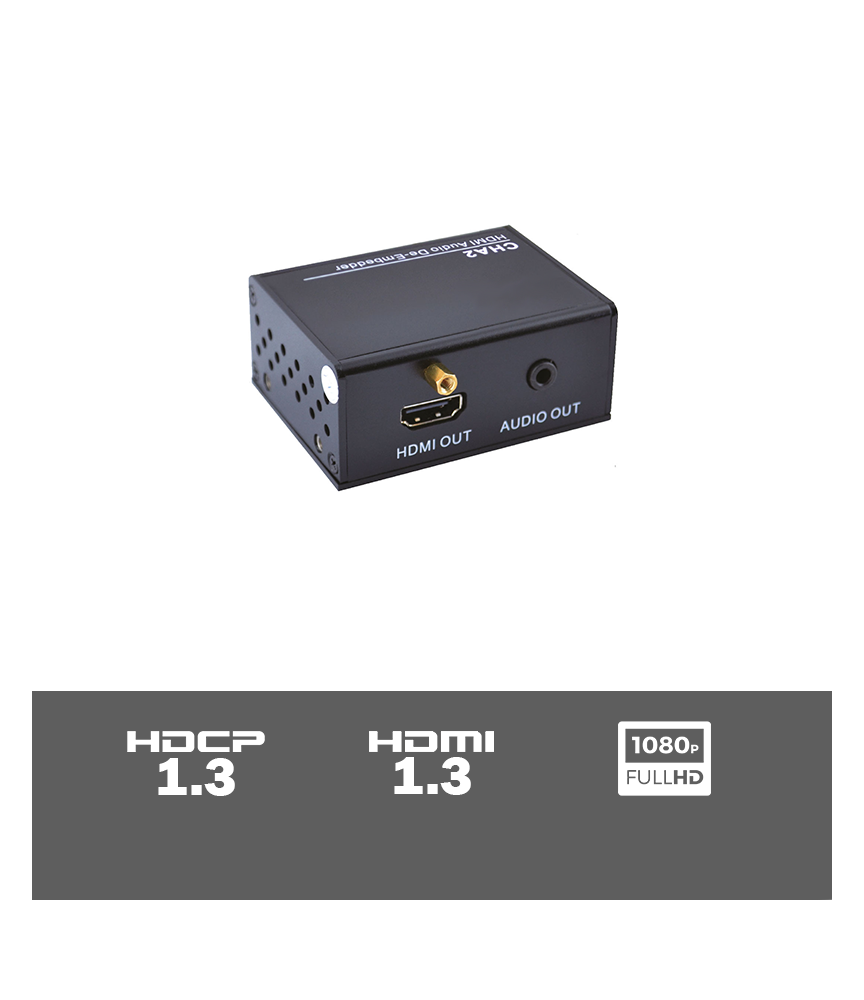

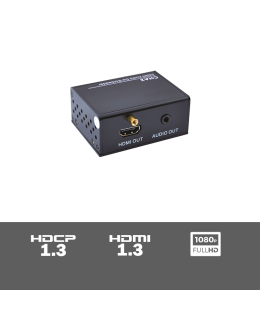

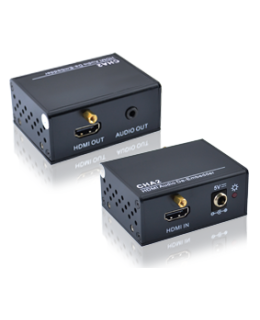

De CHA2 is een compacte HDMI audio de-embedder. Met deze de-embedder kunt u het audio signaal filteren uit het HDMI signaal en deze bijvoorbeeld doorsturen naar uw audio-systeem. Wordt geleverd met mini-jack male naar 2x RCA female verloop.
Features:
- HDCP 1.3 Compliant
- HDMI reclock en DDC buffer
- Analoge audio uitgang
- Resolutie ondersteuning tot 1080p, HDTV compatible
- Los meegeleverde mountingears.
Specificaties:
| Video Input | 1 HDMI(HDMI Female); T.M.D.S. 2.9V/3.3V; 50Ω |
| Video Output | 1 HDMI(HDMI Female); T.M.D.S. 2.9V/3.3V; 50Ω |
| Audio Output | Stereo audio (3.5mm mini jack); 50Ω |
| Video Bandwidth | 340 MHz (6.75 Gbit/s) |
| Maximum Pixel Clock | 165MHz |
| Max Time-delay | 5nS (±1nS) |
| Resolution Range | Up to 1920 x 1200 or 1080P@60Hz |
| HDCP | Compliant with HDCP, DVI1.0/HDMI 1.3 standard |
| CMRR | >90dB@20Hz~20KHz (vedio) >70dB@20Hz~20KHz (audio) |
| Audio Bandwidth | 20Hz ~ 25KHz |
| Frequency Response | 20Hz ~ 20KHz |
| SNR | Max 80dB |
| Stereo Channel Separation | >75dB@20Hz~20KHz |
| THD + Noise | 1%@1KHz, 0.3%@20KHz |
| Power Supply | 5V DC, 3W |
| Temperature | -20 ~ +70℃ |
| Humidity | 10% ~ 90% |
| Chassis Dimension | W92 x H52.5 x D28mm |
| Weight | 0.2Kg |
Data Sheet
| Physical | |
| Dimensions | 92 x 28 x 52.5mm (W x D x H) |
| Weight | 200 Gr |
| Humidity | 10% ~ 90% |
| Temperature | -20 ~ 70℃ |
| Power supply | DC 5V |
| 19 inch | No |
| Power consumptions | 3 Watt |
| Signal | |
| Inputs | 1x HDMI |
| Outputs | 1x HDMI, 1x analog audio (3.5mm Jack) |
| Bandwidth | 10.2 Gbp/s |
| Maximum resolution | 1920 x 1080p |
| Supported resolutions | Up to 1920 x 1200 |
| Standards | |
| HDMI Standard | HDMI 1.3 |
| HDCP Standard | HDCP 1.3 |
| HDMI CEC | Ja |
| General specifications | |
| Auto switching | No |
| Overige | |
| Diagram | https://www.digichain.nl/images/diagrams/PTN%20-%20CHA2.jpg |
